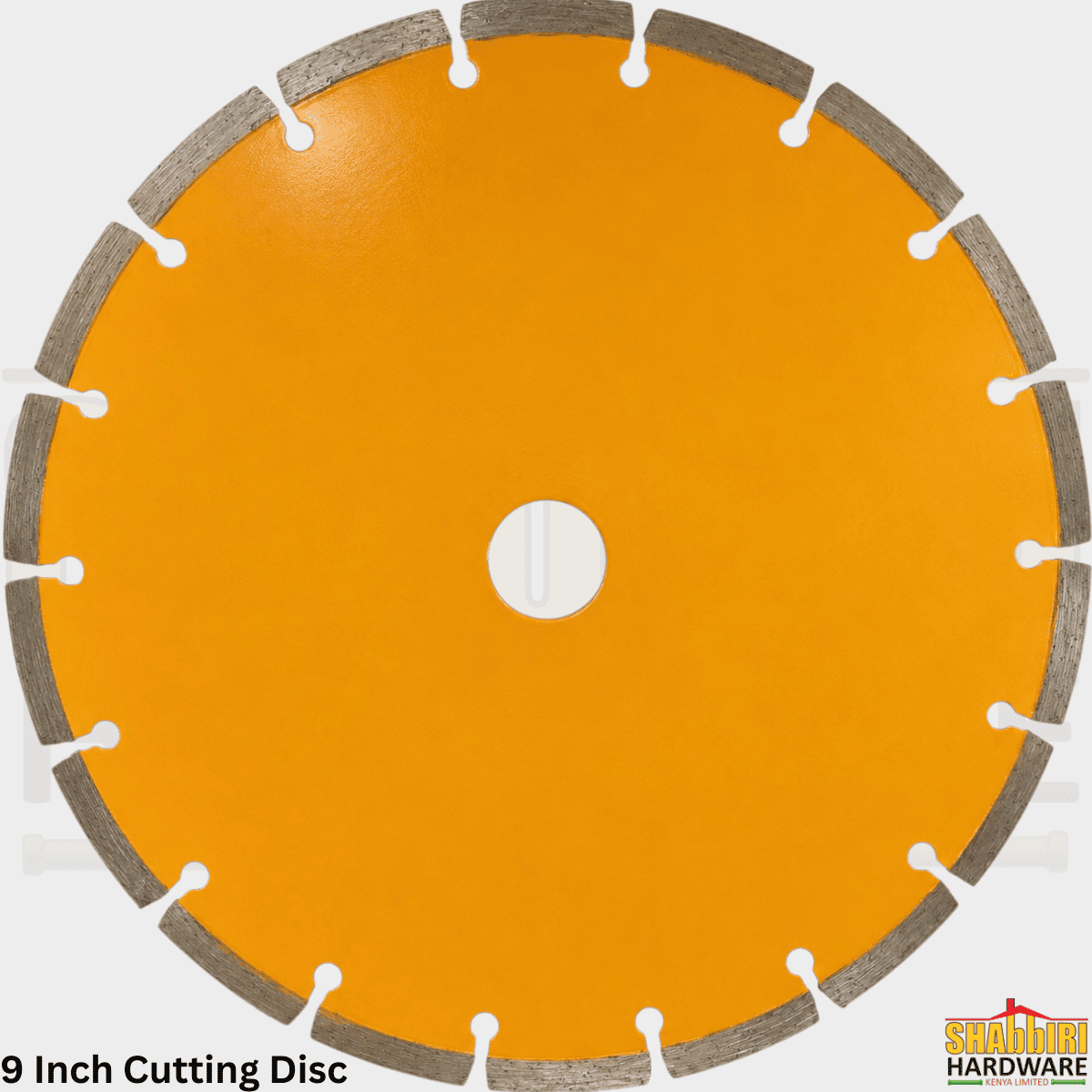

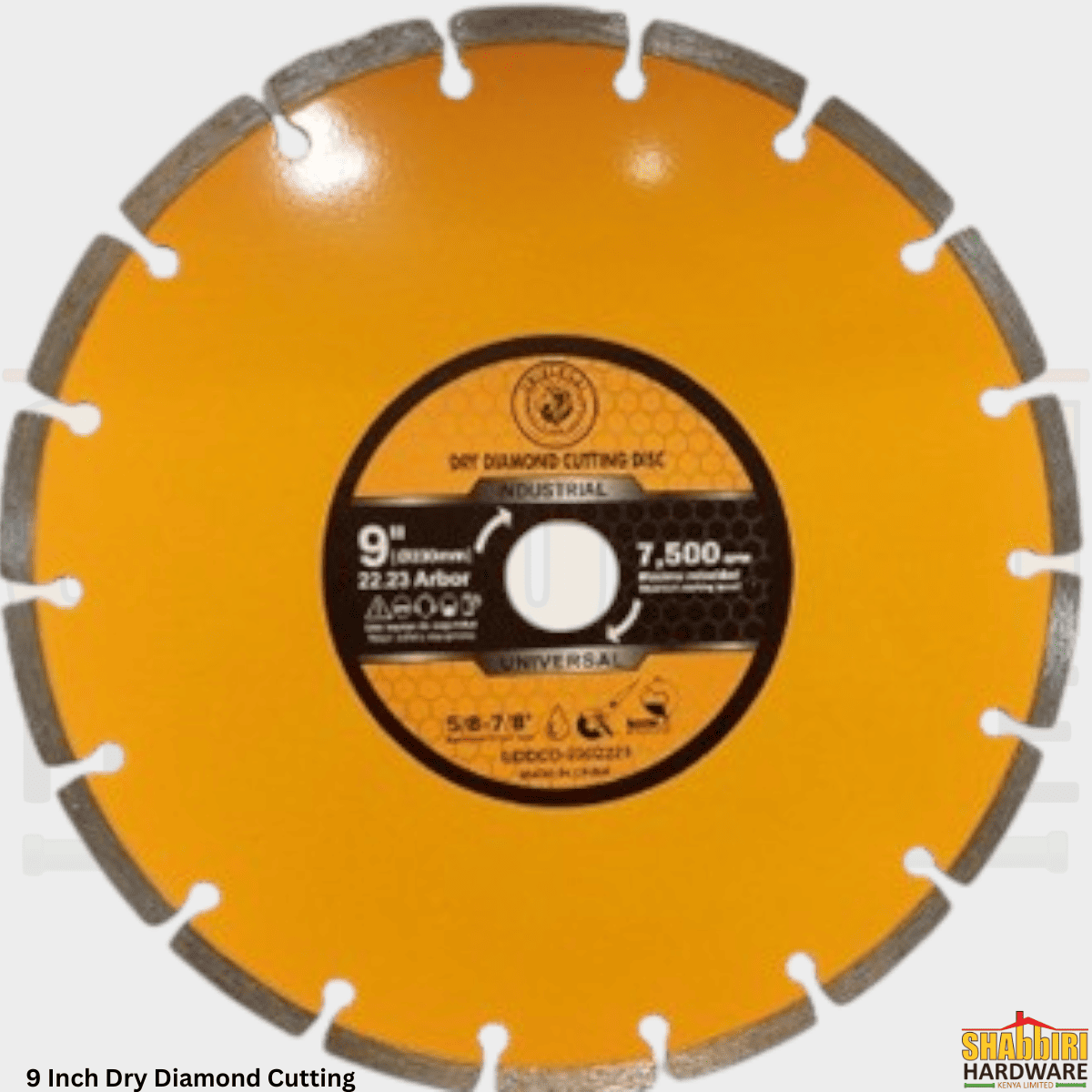

9 Inch Dry Diamond Cutting Disc 230mm – Turbo Blade for Concrete, Granite, Tiles & Stone
The 9 inch dry diamond cutting disc (230mm) from Shabbiri Hardware is a professional-grade blade engineered for fast, clean, dry cutting of the toughest building materials. Designed to fit any standard 9" angle grinder, this diamond disc slices effortlessly through reinforced concrete, granite, marble, ceramic and porcelain tiles, bricks, pavers, blocks and natural stone — no water required.
Why Buy This Diamond Cutting Disc
- Dry cutting – no water needed. Cut on-site anywhere, saving time and mess.
- Cuts almost everything. Concrete, granite, marble, tiles, bricks, blocks, kerbs and stone.
- Fits all 9" (230mm) angle grinders with the standard 22.23mm bore.
- Fast, clean cuts thanks to hardened diamond segments and a reinforced steel core.
- Long-lasting value – sharp diamond bond stays aggressive cut after cut.
- Safe & true running – precision-balanced to reduce vibration and heat.
Full Technical Specifications
| Product Type | Dry Diamond Cutting Disc |
| Diameter | 9 inch (230 mm) |
| Bore / Arbor Size | 22.23 mm (7/8") standard |
| Rim Type | Segmented / Turbo rim (dry cut) |
| Segment Height | 7–10 mm (long life) |
| Segment Thickness | approx. 2.6–3.0 mm |
| Steel Core | Hardened, heat-treated, laser-weldable steel |
| Diamond Bond | High-grade sintered diamond segments |
| Cutting Method | Dry cutting (can also cut damp/wet on most grinders) |
| Max. Safe Speed | 6,600 RPM |
| Max. Cutting Depth | approx. 65–68 mm |
| Suitable Machine | 9" / 230mm angle grinders |
| Materials Cut | Concrete, reinforced concrete, granite, marble, tiles, bricks, blocks, pavers, kerbstones, natural stone |
| Not Recommended For | Wood, metal, plastic (use the correct blade for these) |
How to Use
- Check the disc for cracks, missing segments or a bent core before every use.
- Match the speed – confirm your grinder does not exceed 6,600 RPM for a 230mm disc.
- Mount correctly – unplug the grinder, align the arrow on the disc with the rotation direction, and tighten the flange nut.
- Fit the guard – always keep the blade guard between the disc and your body.
- Reach full speed before touching the material.
- Cut straight and light – guide with the disc’s own weight; do not force it.
- Cool on long cuts – lift the disc out every 10–15 seconds to clear dust and cool it.
- Cut deep material in stages rather than one deep plunge.
- Finish safely – let the disc stop completely before setting the grinder down.
Store & Delivery Information
Shabbiri Hardware
🏪 Main Branch: Magadi Road, Ongata Rongai, Nairobi
🏪 Tuala Branch: Past Nazarene University, Tuala
📞 Call / WhatsApp: 0745 554008 / 0741 042484
✉ Email: info@shabbirihardware.co.ke
📍 Store Address: Magadi Rd, Ongata Rongai, Kenya
🚚 Countrywide Delivery Available
✔ Same-day delivery within Nairobi
✔ Next-day delivery to other towns across Kenya
Delivery Locations: Nairobi, Mombasa, Nakuru, Kisumu, Eldoret, Thika, Naivasha, Kakamega, Bungoma, Kericho, Kitale, Machakos, Meru, Embu, Isiolo, Nanyuki, Malindi, Voi, Garissa, and more.
Specifications
| Brand | Universal |
| Model | SHK-DDC-230 |
| Category | Tools & Site Equipment |
| Availability | In stock |
| Sourced by | Shabbiri Hardware Kenya Limited |
