Name: Bovos Mortice Lock DBC 24L – Complete Door Lock Set with Lever Handles, Cylinder & Keys
Brand: Bovos
SKU: DBC-24L
Price: 1800 KES
Availability: InStock

Bovos · Model DBC 24L

Bovos Mortice Lock DBC 24L – Complete Door Lock Set

Lever handles, mortice lock body, cylinder and keys in one box. Made for wooden and steel doors. In stock at Shabbiri Hardware, Magadi Road – Ongata Rongai & Tuala.

Complete set Latch + deadbolt Left or right hand Wood & steel doors

Product Overview

The Bovos Mortice Lock DBC 24L is part of the Bovos DBC range, one of the most popular door lock lines in Kenya. One box gives you everything needed to secure a door. The lock body sits inside the edge of the door (a mortice), which makes it stronger and neater than a surface-mounted rim lock.

Press the lever to open the spring latch. Turn the key to throw the deadbolt. It is a reliable choice for homes, rentals, apartments, schools and offices across Nairobi.

Key Features & Benefits

All-in-one set

Lever handles, lock body, cylinder, keys, strike plate and screws come together. Nothing extra to buy.

Latch + deadbolt

The spring latch keeps the door closed and the key-operated deadbolt locks it securely.

Reversible handing

The latch turns around, so one set fits left-hand and right-hand opening doors.

Wood or steel doors

Fits flush doors, panel doors, solid timber doors and steel doors with a mortice pocket.

Rust-resistant finish

Plated handles and backplates resist corrosion and keep their look with simple cleaning.

Easy to fit

Standard mortice sizing lets a fundi fit it quickly and replace many older locks of the same size.

Technical Specifications

Brand	Bovos
Model	DBC 24L
Range	Bovos DBC series mortice locks
Product type	Mortice door lock set (sashlock: latch + deadbolt)

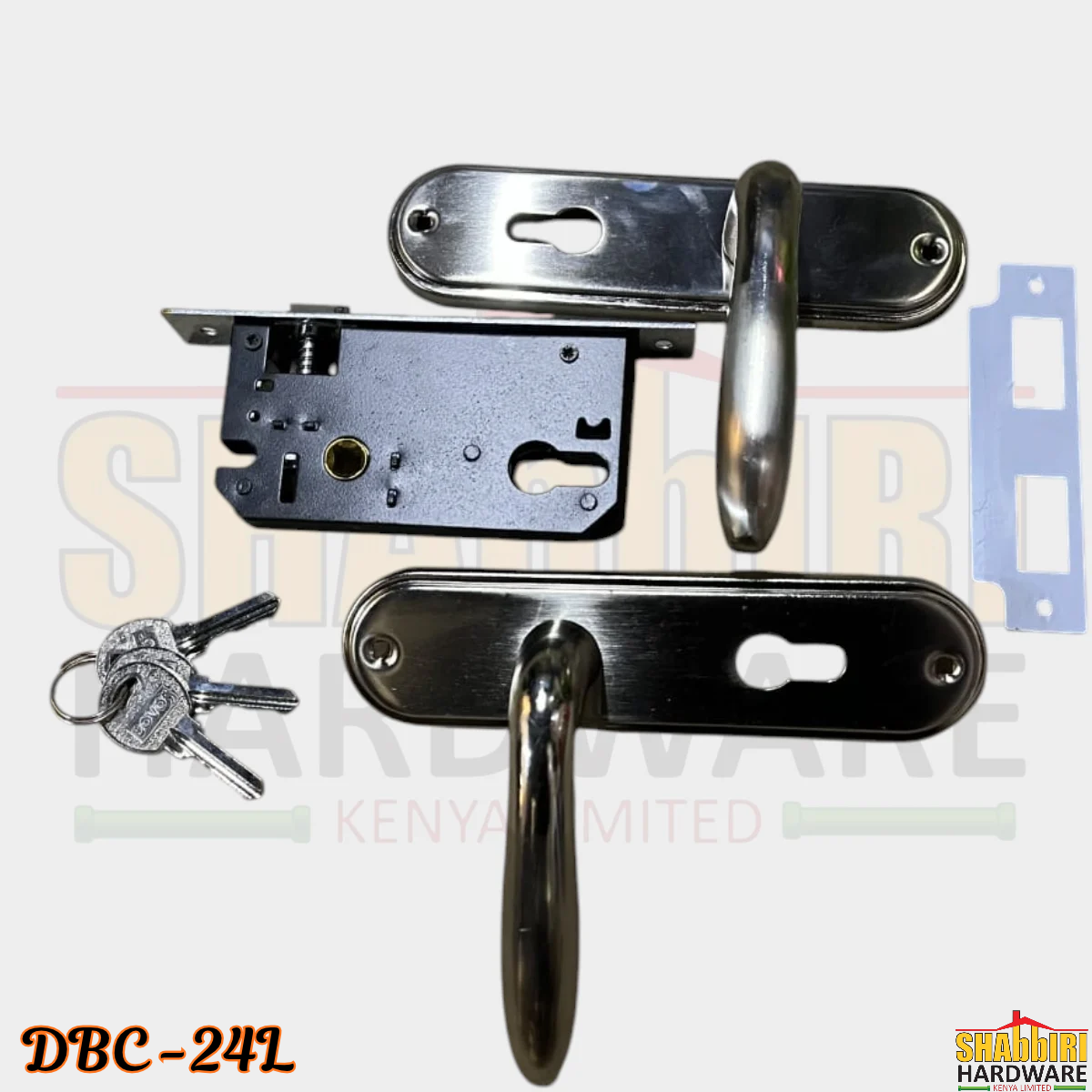

Set contents	Pair of lever handles on backplates, mortice lock body, key cylinder, keys, strike plate, spindle and fixing screws
Operation	Lever opens the latch; key throws and withdraws the deadbolt
Handing	Reversible – left or right hand
Suitable doors	Wooden and steel/metal doors with a mortice pocket
Door thickness	Approx. 35–50 mm
Handle material	Metal alloy, plated rust-resistant finish
Lock body	Steel case with latch bolt and deadbolt
Application	Bedrooms, offices, main doors, back doors, store rooms, rentals

Tip: Replacing an old lock? Bring it to either branch, or measure the backset (door edge to centre of the handle hole). We will confirm the DBC 24L fits, or match another Bovos DBC model.

How to Install the Bovos DBC 24L

Fitting is best done by an experienced fundi. We are supply-only, but we can share contacts of independent installers.

Step 1Mark the door. Hold the lock body against the door edge at handle height (about 1 m from the floor). Mark the body outline, spindle hole and cylinder hole on both faces.

Step 2Cut the mortice. Drill a line of holes down the centre of the door edge to the depth of the lock body, then clean it out with a chisel.

Step 3Rebate the faceplate. Chisel a shallow recess so the faceplate sits flush with the door edge.

Step 4Drill the holes. Drill the spindle and cylinder holes from each side towards the middle to avoid splitting the timber.

Step 5Set the latch. Make sure the curved side of the latch faces the direction the door closes. Reverse it if needed.

Step 6Fit the lock body. Slide it into the mortice and fix it with the faceplate screws.

Step 7Insert the cylinder. Push the cylinder through and lock it in with the long fixing screw.

Step 8Fit the handles. Push the spindle through, place the handles on both sides and tighten the backplate screws evenly.

Step 9Fit the strike plate. Mark where the latch and bolt meet the frame, cut the pockets and screw on the strike plate.

Step 10Test it. Check the handle springs back, the latch clicks into the frame and the key locks and unlocks smoothly.

Daily Use & Care

Using the lock

✔ Press the lever down to open.
✔ Turn the key fully to throw the deadbolt.
✔ Turn it back fully before pulling the key out.

Cleaning

✔ Wipe handles with a soft, damp cloth.
✔ Avoid bleach, acids and abrasive powders.
✔ Keep paint and varnish off the handles.

Maintenance

✔ Spray graphite or dry PTFE lubricant into the keyway every 6 months.
✔ Re-tighten loose backplate screws.
✔ Never force a stiff key. Check the strike plate alignment instead.

Why Buy from Shabbiri Hardware?

✔ Trusted hardware supplier in Nairobi since 1990.
✔ Two branches on Magadi Road: Ongata Rongai and Tuala.
✔ Wide range of door locks, handles, padlocks and cylinder locks.
✔ Retail and wholesale supply for contractors, landlords and developers.
✔ Help choosing the right lock, plus contacts of independent fundis.

Frequently Asked Questions

Q: Does the Bovos DBC 24L work on steel doors?

A: Yes. It fits wooden doors and steel doors that have a mortice pocket for the lock body.

Q: Can it be used on a left- or right-hand door?

A: Yes. The latch is reversible, so the same set works on either hand of door.

Q: What comes in the DBC 24L box?

A: A pair of lever handles on backplates, the mortice lock body, a key cylinder, keys, a strike plate and fixing screws.

Q: Can I replace my old mortice lock with the DBC 24L?

A: In most cases, yes. Bring your old lock or its measurements to either branch and we will match the right size.

Q: Where can I buy the Bovos DBC 24L in Nairobi?

A: At Shabbiri Hardware – Magadi Road, Ongata Rongai (opposite Hashi Petrol Station) and Tuala (past Nazarene University). Call 0741 042484 or 0745 554008.

Q: Do you install door locks?

A: We are supply-only, but we can share contacts of independent fundis who fit mortice locks.
