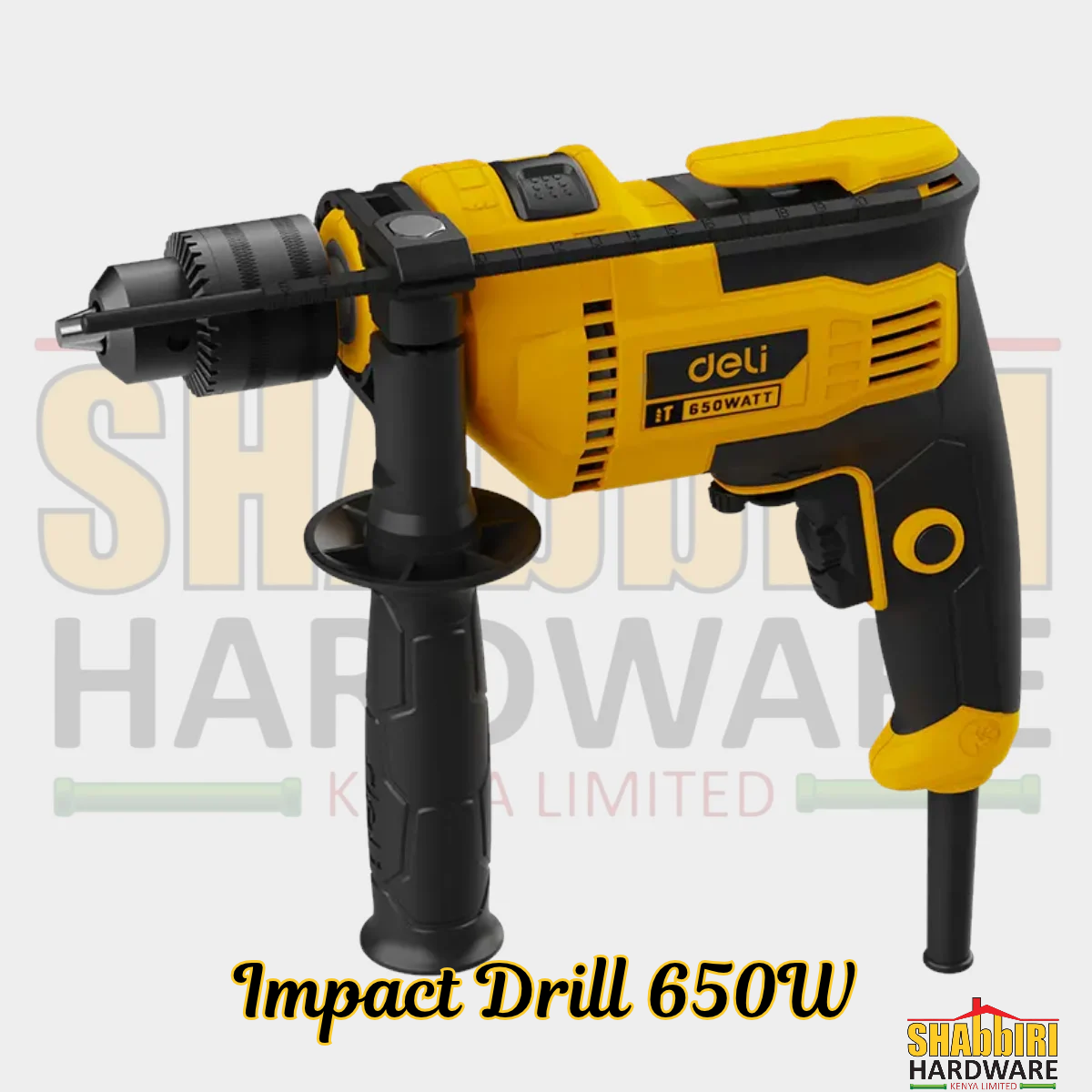

Deli 650W 13mm Impact Drill DL-CZ13-E5 – Electric Hammer Drill for Concrete, Wood & Steel
Deli 650W 13mm Impact Drill DL-CZ13-E5
A corded hammer drill with a pure copper 650W motor, 13mm metal chuck and two working modes. Drill concrete walls, brick and block in hammer mode, then switch to plain drilling for timber, steel and plastic. In stock at Shabbiri Hardware, Magadi Road, Ongata Rongai and Tuala.
Key figures
Product overview
A dependable impact drill for Kenyan construction work
The Deli DL-CZ13-E5 impact drill is built for the jobs that come up every day on Nairobi building sites and homes: fixing curtain rails and shelves into stone walls, anchoring gate hinges, running electrical conduit, fitting gypsum and PVC ceiling frames, and drilling holes for plumbing and wall plugs.
Its 650W pure copper motor runs cooler and lasts longer than aluminium-wound motors at the same rating. The hammer action delivers up to 48,000 blows per minute, so masonry bits cut cleanly through concrete, machine-cut stone, brick and block. Switch the mode selector off hammer and it works as a standard electric drill machine for wood, metal sheet, steel and plastic.
The variable-speed trigger lets you start a hole slowly and accurately, then build to full speed. A lock-on button keeps the drill running for long runs of holes, the reverse switch frees jammed bits and backs out screws, and the 360° side handle with depth gauge gives control and repeatable hole depth for anchors and wall plugs.
Features
What makes it work well
Pure copper 650W motor
Steady torque under load and better heat resistance for long working days.
Drill and hammer modes
One selector on top of the housing switches between rotary drilling and impact drilling.
13mm metal keyed chuck
Grips round and hex shank bits firmly and holds up better than plastic keyless chucks.
Variable speed trigger
Squeeze lightly for slow starts on tiles and metal, press fully for fast drilling in masonry.
Forward / reverse
Back out a stuck bit or remove screws without forcing the tool.
Lock-on switch
Keeps the motor running for repeated holes without holding the trigger.
360° auxiliary handle
Two-handed grip for left or right hand users that reduces kickback.
Depth gauge rod
Set hole depth once and drill every anchor hole to the same depth.
Ventilated housing
Large cooling slots on both sides help protect the motor during heavy use.
Technical specifications
Deli DL-CZ13-E5 full specifications
| General | |
|---|---|
| Brand | Deli Tools |
| Model | DL-CZ13-E5 |
| Tool type | Corded electric impact drill (hammer drill) |
| Colour | Yellow and black |
| Power and performance | |
| Rated input power | 650W |
| Motor | Pure copper winding |
| Voltage / frequency | 220–240V ~ 50Hz |
| No-load speed | 0–3000 RPM (variable) |
| Impact rate | 0–48,000 BPM |
| Operating modes | Rotary drilling / impact drilling |
| Rotation | Forward and reverse |
| Chuck and capacity | |
| Chuck type | Metal keyed 3-jaw chuck |
| Chuck capacity | 1.5–13mm |
| Max. drilling in concrete / masonry | 13mm |
| Max. drilling in steel | 10mm |
| Max. drilling in wood | 25mm |
| Handling | |
| Switch | Variable speed trigger with lock-on button |
| Auxiliary handle | 360° adjustable side handle |
| Depth stop | Yes, adjustable depth gauge rod |
| Power cable | Mains cable with strain relief |
Maximum drilling diameters are guidance values for this 650W class. Use sharp, good-quality bits and the correct mode for best results.
Choose the right mode
Which mode and bit for which material
Concrete, stone, brick
MODE: HAMMER · BIT: masonry (carbide tip)
Medium to high speed, firm steady pressure.
Steel and metal sheet
MODE: DRILL · BIT: HSS metal bit
Low speed. Centre-punch first and add cutting oil on thick steel.
Wood, MDF, boards
MODE: DRILL · BIT: wood / spade bit
High speed. Ease off as the bit breaks through to avoid splintering.
Ceramic and porcelain tile
MODE: DRILL (never hammer) · BIT: tile bit
Very low speed, light pressure, keep the tip cool with water.
PVC, WPC panels, plastic
MODE: DRILL · BIT: HSS or wood bit
Medium speed so the plastic does not melt around the hole.
How to use
How to use the Deli 650W impact drill
Check the tool and power supply
Confirm your socket supplies 220–240V. Inspect the cable and plug for damage. Make sure the trigger is off and the lock-on button is released before plugging in.
Fit the side handle and depth gauge
Slide the auxiliary handle over the chuck collar, turn it to a comfortable angle and tighten. Insert the depth rod and set it to the depth you need, for example the wall plug length plus 5mm.
Insert the drill bit
Open the chuck jaws, push the bit in fully, close the jaws, then tighten with the chuck key in all three key holes so the bit is gripped evenly. Remove the key before starting.
Select mode and direction
Set the selector on top to the hammer symbol for concrete and masonry, or the drill symbol for wood, metal, plastic and tiles. Set the direction switch to forward.
Mark and start the hole
Mark the spot with a pencil. On tiles or smooth surfaces put masking tape over the mark. Hold the drill with both hands, keep it square to the surface and start slowly.
Drill at the right speed
Once the bit bites, increase speed. Let the hammer action do the work and apply steady pressure only. Pull the bit back every few centimetres to clear dust from deep holes.
Use lock-on for repeated holes
For long runs of holes, press the lock-on button while holding the trigger. Squeeze and release the trigger to switch off.
Reverse to free a stuck bit
Release the trigger, wait for the motor to stop, switch to reverse and run slowly to back the bit out.
Finish and clean up
Unplug before changing bits. Let hot bits cool. Blow dust out of the vents, wipe the housing with a dry cloth and store the drill and chuck key in a dry place.
Safety tips
- Wear safety glasses, and a dust mask when drilling concrete or stone.
- Use ear protection for long hammer-drilling sessions.
- Check walls for hidden electrical cables and water pipes before drilling.
- Always hold the drill with both hands using the side handle in hammer mode.
- Never change mode or direction while the motor is running.
- Do not use the drill in wet conditions, and keep the cable away from the bit.
- Keep loose clothing, jewellery and long hair away from the chuck.
Applications
Ideal for
Who it suits
Built for fundis, contractors and homeowners
Electricians, plumbers, carpenters, ceiling and gypsum installers and general fundis use a 650W 13mm impact drill as their everyday drill. It is light enough for overhead ceiling work yet strong enough for the concrete slabs and stone walls common in Nairobi, Ongata Rongai, Kiserian, Karen and Kajiado County. Homeowners get one tool that covers almost every drilling job in the house.
In the box
Package contents
- 1 × Deli DL-CZ13-E5 impact drill
- 1 × Auxiliary side handle
- 1 × Depth gauge rod
- 1 × Chuck key
- 1 × User manual
FAQ
Frequently asked questions
Can the Deli 650W impact drill drill into concrete?
Yes. Switch to hammer mode and use a carbide-tipped masonry bit up to 13mm for concrete, brick and block.
What chuck size does the Deli DL-CZ13-E5 have?
A 13mm metal keyed chuck that holds bits from about 1.5mm to 13mm shank diameter.
Can I use it as a screwdriver?
Yes, in drill mode at low speed, with reverse for removing screws. For heavy repeated screw driving a dedicated drill driver is better.
What is the difference between an impact drill and a rotary hammer?
An impact drill uses a light hammer mechanism for holes up to about 13mm in masonry. A rotary hammer (SDS) uses a heavier piston action for larger holes and chiselling. For everyday fixing jobs the impact drill is lighter and easier to handle.
Do you sell drill bits and wall plugs?
Yes. Both branches stock masonry, metal, wood and tile bits, wall plugs, anchors and screws to go with your drill.
Where can I buy the Deli impact drill in Nairobi?
At Shabbiri Hardware on Magadi Road: Ongata Rongai (opposite Hashi Petrol Station) and Tuala (past Nazarene University). Call 0741 042484 or 0745 554008.
