SELF DRILLING SCREWS HEX HEAD 1" (200pcs per pkt)

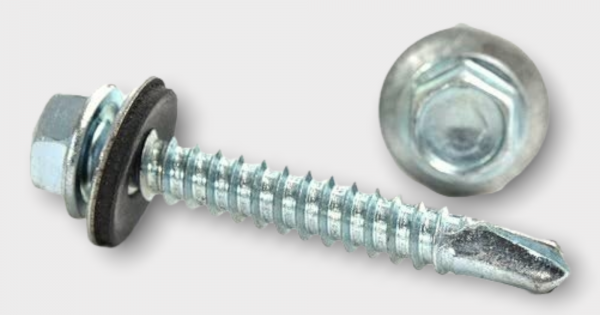

Hex Head Self Drilling Roofing Screws with EPDM Washer
Hex head self drilling screws – also known as tek screws or mabati roofing screws – drill their own hole, cut their own thread and fasten in one quick step. No pre-drilling, no tapping, no separate nut. The sharp drill-bit point bites straight into steel, while the hex washer head and bonded EPDM rubber washer give a tight, weatherproof seal.
Sold in bulk packets, these zinc plated screws are the go-to fastener for fixing roofing sheets to steel purlins, cladding, steel framing, gutters and light fabrication work across Nairobi and Kenya. Buy from Shabbiri Hardware – trusted since 1990 on Magadi Road, Ongata Rongai and Tuala.
Technical Specifications
| Product | Self Drilling Screw, Hex Washer Head |
|---|---|
| Length | 1 inch (25mm), measured under the head |
| Gauge | Size 12 (approx. 5.5mm thread diameter) – common roofing gauge |
| Head Type | Hex washer head (flanged six-sided head) |
| Drive Size | 8mm (5/16") hex nut-setter |
| Point Type | Drill-bit (tek) point – self drilling |
| Thread | Self-tapping machine-type thread for steel |
| Washer | Bonded steel washer with EPDM rubber seal |
| Material | Case-hardened carbon steel |
| Finish | Zinc plated (silver) for corrosion resistance |
| Drilling Capacity | Thin to medium steel – roofing sheets onto light purlins up to about 4mm |
| Suitable Base | Mild steel, light gauge steel, galvanised and pre-painted sheet |
| Recommended Tool | Cordless drill / screw gun with clutch, 1,800–2,500 RPM |
| Packing | 200 pieces per packet |
| Selling Unit | Per packet |
Gauge and drilling capacity are typical for this screw size. Confirm the exact specification with our branch team for structural or heavy steel work.
Key Features & Benefits
No Pre-Drilling
The tek point drills its own pilot hole – saving time and drill bits on site.
Leak-Proof Seal
The EPDM rubber washer compresses to seal the hole against rain and dust.
Strong Grip
Hardened thread forms a tight joint in steel that resists vibration and wind uplift.
Fast Driving
Hex head stays firmly on the magnetic nut-setter – no slipping or cam-out.
Rust Resistant
Zinc plating protects against corrosion for indoor and sheltered outdoor use.
Bulk Value
A full packet suits contractors, fundis and complete roofing jobs.
Where to Use Hex Head Self Drilling Screws
How to Use Self Drilling Screws – Step by Step
- Prepare your tool. Fit a magnetic hex nut-setter (size shown in the specifications) into a cordless drill or screw gun. Set it to forward and a medium clutch setting.
- Mark the fixing points. On roofing, mark screw lines over the purlins. Fix through the crest (top) of corrugated sheets, or the pan for box profile, as per the sheet maker's guide.
- Position the screw. Place the screw on the magnetic bit and hold it square to the surface – never at an angle.
- Drill with steady pressure. Run the drill at full speed with firm, even pressure. Let the tek point cut through – don't force it or rock the drill.
- Drive home. Once the point breaks through, the thread pulls the screw in. Stop when the EPDM washer is snug and just slightly bulging at the edges.
- Check the seal. The washer should sit flat. If it is squashed out or the screw spins freely, it is over-tightened – fit a new screw next to the hole.
- Clean up swarf. Sweep metal shavings off the sheet the same day to stop rust stains on the roofing.
Pro Tips & Safety
Do
- Use a clutch-controlled drill to avoid stripping the thread.
- Wear safety glasses and gloves – hot swarf can fly.
- Keep screws in a straight line for a neat, professional roof.
- Store packets dry to protect the zinc coating.
Avoid
- Using an impact driver at full power – it can crush the washer.
- Driving into timber purlins – choose timber roofing screws instead.
- Steel thicker than the screw's drilling capacity.
- Reusing a screw whose washer is damaged.
Frequently Asked Questions
Do I need to pre-drill before using self drilling screws?
No. The drill-bit point cuts its own hole and forms the thread in one step on thin steel and mabati sheets.
Are they suitable for roofing?
Yes. The bonded EPDM washer seals the hole against rain – ideal for fixing mabati, IT4, box profile and corrugated sheets to steel purlins.
What is the difference between self drilling and self tapping screws?
A self tapping screw forms threads but needs a pilot hole first. A self drilling screw has a drill-bit tip, so it makes its own hole and thread in one action.
Can I use them on timber?
They are designed for steel. For timber purlins, ask our team for timber roofing screws.
Do you deliver?
Yes – delivery on request: same-day within Nairobi and next-day countrywide. Free pickup is available at both branches.
