WATER BAR - CENTRE BULB ROLL

WATER BAR - CENTRE BULB ROLL

KSH 26,499/ roll
In stock
About this product
Product Overview

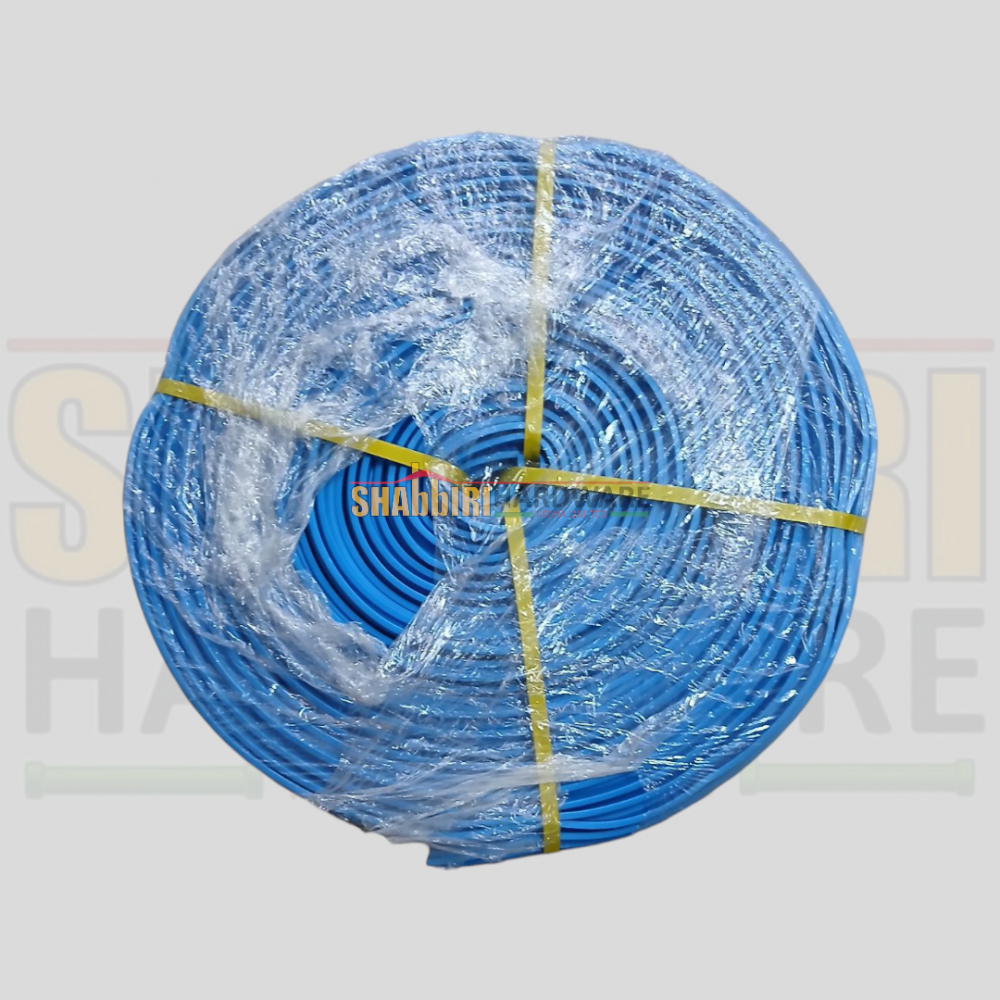

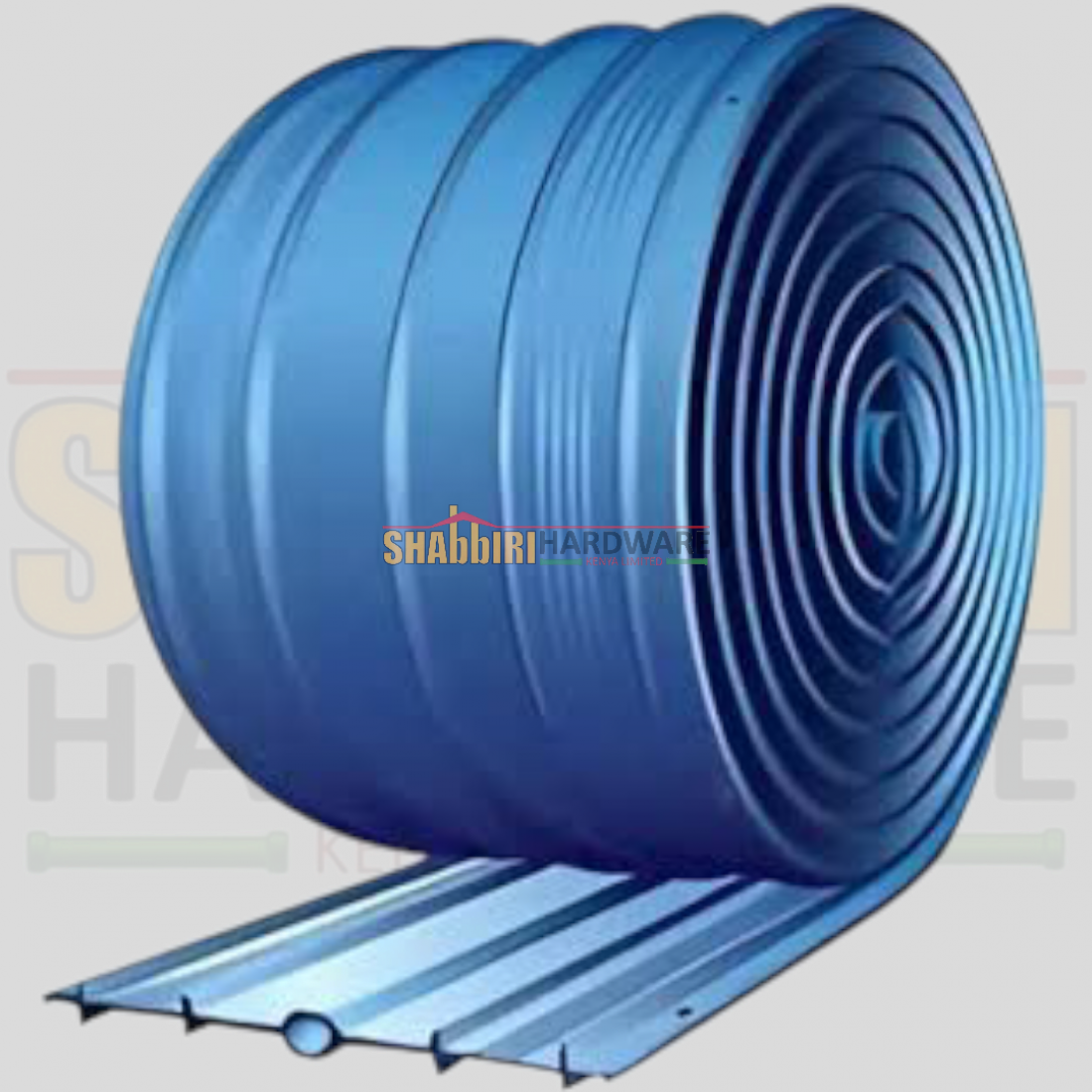

Centre Bulb Water Bar – 25 Metre Roll

A water bar (also called a water stop) is a flexible strip that is cast inside the concrete at a joint. Wherever two concrete pours meet – or where a slab is designed to move – water can find its way through the gap. The water bar sits across that gap like a hidden wall, so water cannot pass through the joint.

The centre bulb is the round, hollow tube in the middle of the strip. It sits right over the joint and stretches and squeezes as the concrete expands, shrinks or settles – so the seal stays tight even when the joint moves. That makes this the right choice for expansion and movement joints in water tanks, basements, swimming pools and other water-retaining structures.

📏 25 m per roll🫧 Centre bulb for movement💧 Stops water at joints🏗️ Cast into concrete💰 KSh 26,499 / roll
Specification

Technical Details

ProductWater Bar – Centre Bulb Type (Water Stop)
Roll length25 metres
MaterialHigh-grade flexible PVC / rubber-type compound
ColourBlue

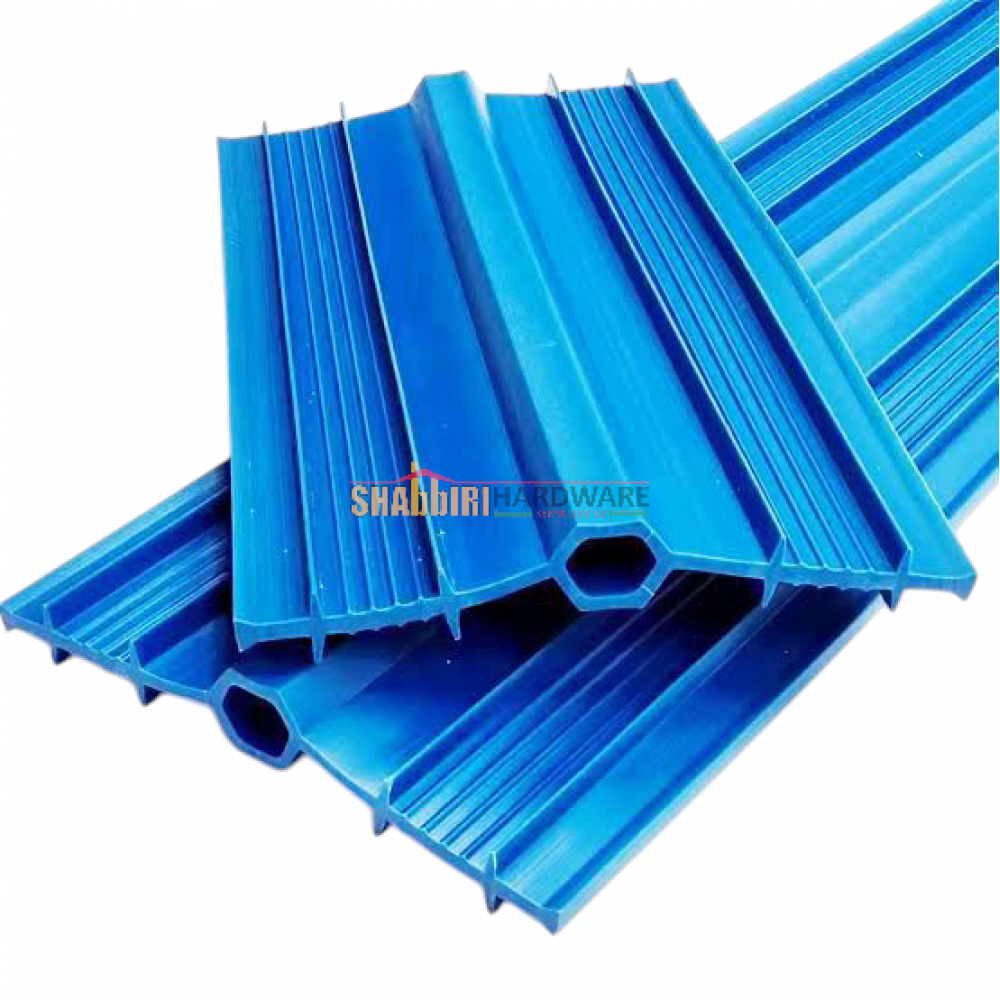

ProfileHollow centre bulb with ribbed flanges on both sides
Joint typeExpansion, movement and construction joints
InstallationCast-in (embedded) during concrete pouring
SplicingHeat-welded joints for continuous runs
ResistanceWater, ground salts, mild chemicals and sewage
Width / thicknessAsk our team for the size in stock to match your joint
Sold asPer roll (25 m)
Key Features

What Makes It Work

🫧 Hollow centre bulbFlexes with the joint as concrete expands, shrinks or settles.
〰️ Ribbed flangesRibs grip the concrete and make a long, winding path water can't follow.
🔥 WeldableLengths are heat-welded together for one unbroken seal around the structure.
🧪 Chemical resistantStands up to ground water, salts and sewage in buried structures.
📏 Long 25 m rollsFewer welds on long walls and slabs – faster and neater on site.
⏳ Long service lifeSealed inside the concrete, protected from sun and wear.
Coverage Area

How Many Rolls Do I Need?

1 roll = 25 m of joint length. Measure the total length of all joints (not the floor area), then add about 10% for welds and offcuts.
Total joint lengthRolls needed (incl. ~10% extra)
Up to 22 m1 roll
23 – 45 m2 rolls
46 – 68 m3 rolls
69 – 90 m4 rolls

Example: a 10 m × 5 m water tank has a floor-to-wall joint of 10 + 10 + 5 + 5 = 30 m. Add 10% → 33 m → 2 rolls.

Benefits

Why Use a Water Bar?

✅ No leaking jointsJoints are the weakest point of any tank or basement – this seals them.
✅ No damp basementsKeeps ground water out of below-ground rooms and car parks.
✅ Protects steel barsStops water reaching the reinforcement, so it doesn't rust and crack the concrete.
✅ Saves repair costsFixing a leaking joint later means breaking concrete – getting it right once is far cheaper.
✅ Handles movementThe bulb lets the structure move without tearing the seal.
✅ PermanentLasts the life of the structure once cast in.
How to Use

Where to Use It

💧 Water tanks & reservoirsFloor-to-wall and wall expansion joints.
🏊 Swimming poolsSlab and wall movement joints.
🏢 Basements & car parksBelow-ground walls and slabs.
🚰 Sewage & treatment plantsSeptic tanks, digesters, manholes.
🌉 Culverts, bridges & tunnelsBox culverts and deck joints.
🧱 Retaining walls & damsAny concrete that holds back water or soil.

Tip: Use the centre bulb type where the joint will move (expansion joints). For joints that won't move, a flat water bar is enough – ask us which suits your job.

How to Install

Step-by-Step Installation

  • Plan the joints. Mark every joint line on the drawings and measure the total length so you buy enough rolls.
  • Unroll and cut. Unroll on a clean, flat surface and let it relax. Cut to length with a sharp knife.
  • Centre the bulb on the joint. Position the water bar so the bulb sits exactly over the joint gap, with half the width on each side.

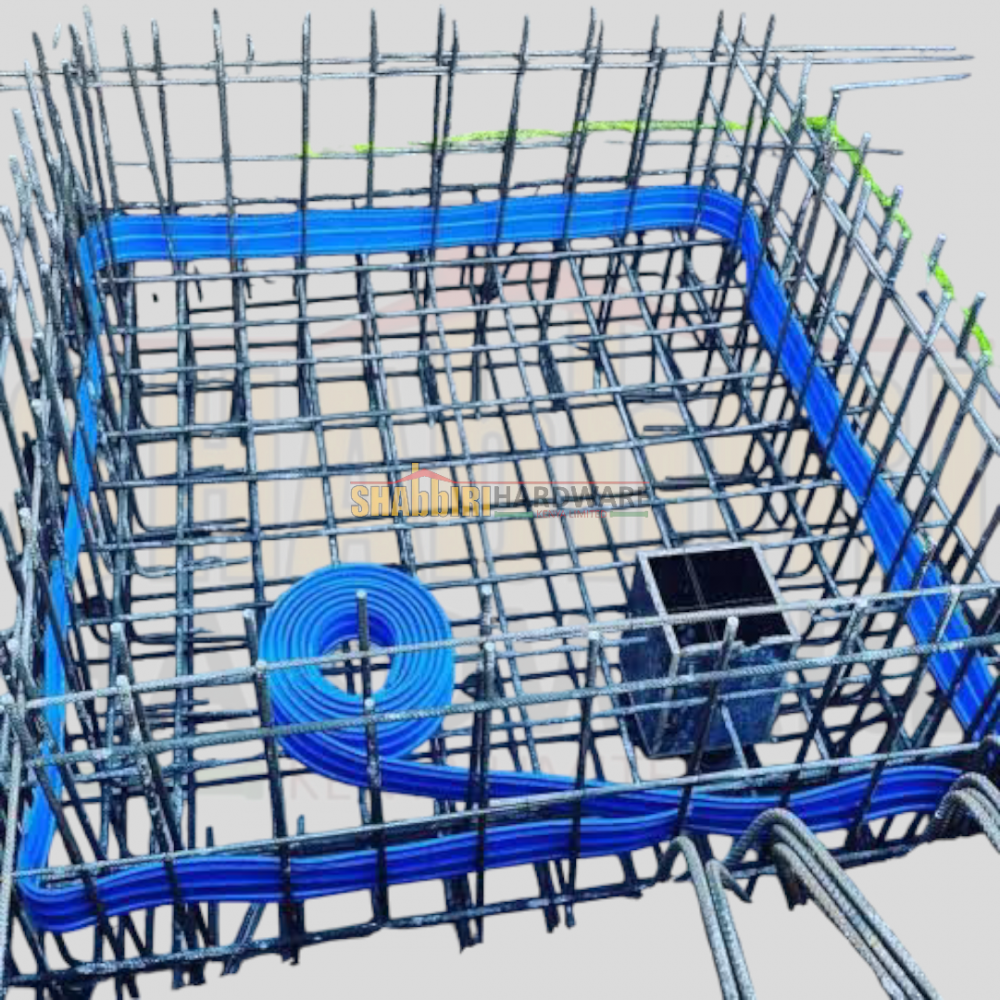

  • Fix it firmly. Tie the edges of the flanges to the reinforcement with binding wire (or clips) every 250–300 mm, so it can't fold or shift when concrete is poured.
  • Use a split stop-end. Clamp the water bar in a split formwork board so the first half is cast in and the second half sticks out, straight and clean.
  • Pour the first side. Place concrete carefully and vibrate well around the flanges so there are no air pockets – but don't hit the water bar with the vibrator.
  • Prepare the second pour. Strip the stop-end, clean the exposed half of any concrete or dirt, and fit joint filler board in the gap if it is an expansion joint.
  • Pour the second side. Cast and compact the concrete around the exposed half the same way.
  • Join lengths properly. Heat-weld every joint and corner so the seal runs unbroken. Never just overlap or tape two pieces.
  • Seal the surface. Finish the top of the joint with a suitable joint sealant (we stock Sika sealants).
  • ⚠️ Common mistakes to avoid: bulb off-centre from the joint · water bar folded or bent over during the pour · nailing through the bulb · overlapping instead of welding · honeycomb (poorly compacted) concrete around the flanges.
    Questions

    Frequently Asked Questions

    What is the price of a centre bulb water bar in Kenya?

    KSh 26,499 per 25 m roll at Shabbiri Hardware, available at our Rongai and Tuala branches with delivery on request.

    Can I fix it after the concrete is already poured?

    No. This type is cast inside the concrete, so it must be fixed before pouring. For existing joints, ask us about surface-applied sealants and waterproofing tapes.

    What is the difference between centre bulb and flat water bar?

    The centre bulb flexes with joint movement, so it is used for expansion joints. A flat water bar is for construction joints that don't move.

    Do you install it?

    We supply materials only, but we can share contacts of independent fundis experienced in water bar installation.

    Do you deliver?

    Yes – same-day within Nairobi and next-day countrywide, on request. Free pickup at both branches.
