Light Gauge HM-001 PVC Ceiling Panel – White with Silver Diamond Motif
Light Gauge HM-001 PVC Ceiling Panel – White with Silver Diamond Motif
A clean, bright and affordable PVC ceiling for homes, rentals, shops and offices in Nairobi. Gloss white strips printed with an elegant silver diamond-and-dot band give any room a finished, decorative look – without paint, without plaster and without termite worries. In stock at Shabbiri Hardware, Magadi Road – Ongata Rongai & Tuala.
Product Overview

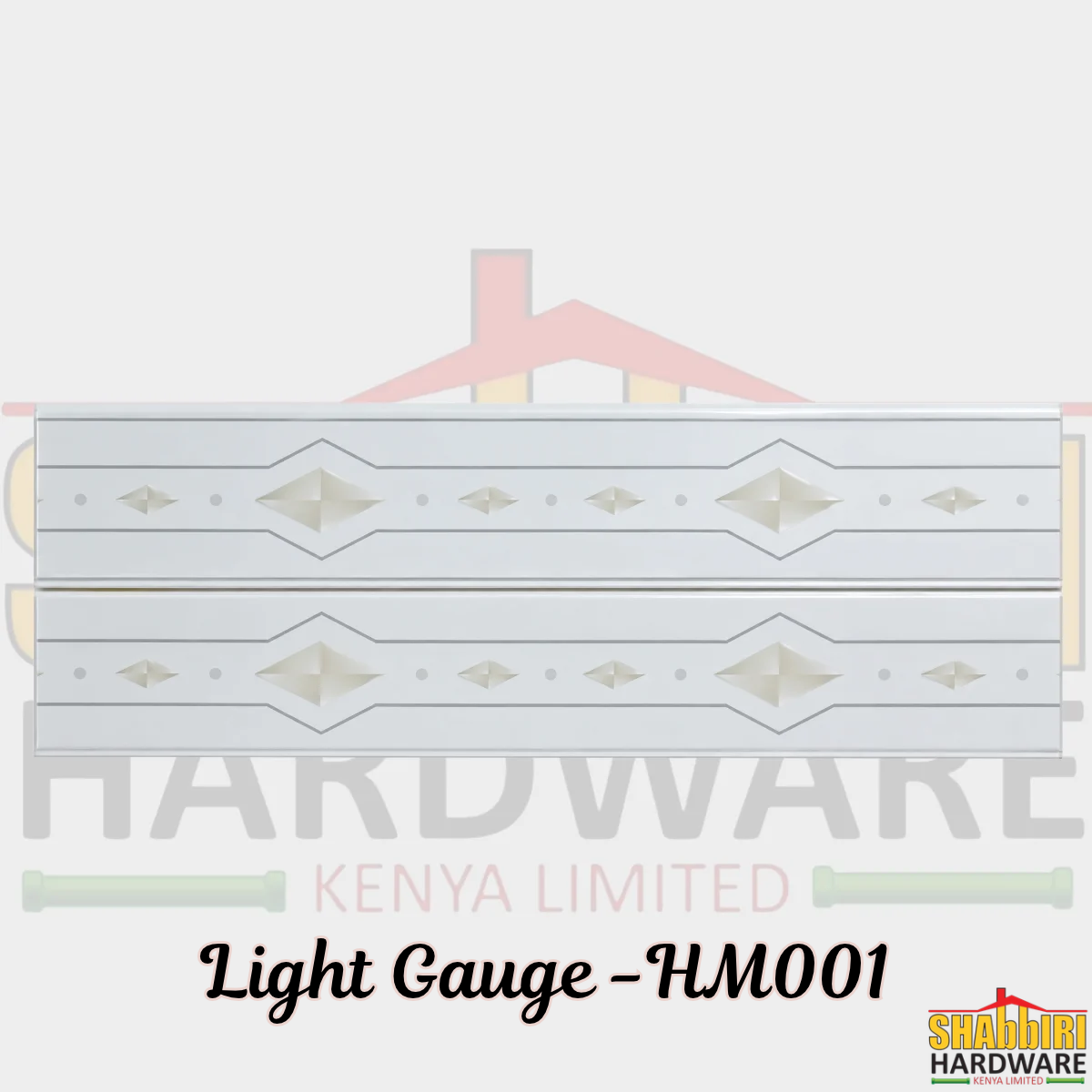

The HM-001 light gauge PVC ceiling panel is a lightweight, interlocking (tongue-and-groove) ceiling strip made from rigid PVC. Its gloss white face carries a repeating silver diamond motif with dotted accents, framed by fine grey grooves, so the finished ceiling looks like a decorative designer ceiling rather than plain boards.
Because it is light gauge, the panel is easy to carry, cut and fix, puts minimal load on the roof structure and keeps project costs down – making it one of the most popular PVC ceilings in Kenya for bedrooms, sitting rooms, verandas, kiosks, rental units and commercial spaces. PVC does not absorb water, so it is equally at home in kitchens, bathrooms and humid areas where gypsum and timber fail.
Key Features & Benefits
💧 100% Waterproof
Will not swell, warp or stain from leaks or steam – ideal for bathrooms, kitchens and laundry rooms.
🐜 Termite & Rot Proof
No timber in the panel, so termites, borers and fungus have nothing to feed on.
✨ Decorative Diamond Finish
Silver diamond and dot motif on gloss white – elegant look with no painting needed.
🪶 Light Gauge & Easy to Handle
Lightweight strips are quick to carry, cut with a fine saw or knife and clip together.
⚡ Fast Installation
Tongue-and-groove joints lock panel to panel for a neat ceiling in a fraction of board-and-plaster time.
🧽 Maintenance-Free
Wipe clean with a damp cloth and mild soap. No repainting, no sanding, no sealing.
💡 Brightens the Room
Gloss white surface reflects light, making rooms look bigger and brighter.
💰 Budget-Friendly
An economical ceiling choice for rentals, extensions, shops and large-area projects.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Light Gauge HM-001 PVC Ceiling Panel |
| Model / Code | HM-001 |
| Material | Rigid PVC (Polyvinyl Chloride), hollow-core extruded profile |
| Gauge | Light gauge (lightweight economy grade) |
| Colour / Design | Gloss white base with printed silver diamond-and-dot motif and grey line grooves |
| Surface Finish | Gloss, printed / laminated decorative face |
| Panel Width | 250 mm (approx.) |
| Panel Length | 5.95 m standard length (approx.) |
| Thickness | Approx. 7 mm |
| Coverage per Panel | Approx. 1.49 m² (0.25 m × 5.95 m) |
| Joint Type | Tongue-and-groove interlocking edge |
| Water Resistance | Waterproof – does not absorb moisture |
| Pest Resistance | Termite-proof, rot-proof, mould-resistant |
| Fire Behaviour | Self-extinguishing PVC (does not support continuous flame once the source is removed) |
| Recommended Use | Interior ceilings and soffits; covered verandas |
| Compatible Accessories | PVC ceiling cornice / L-angle edge trim, PVC joiners, timber or metal brandering |
| Fixing Method | Nails, staples or screws through the fixing flange onto brandering at 400–600 mm centres |
| Cleaning | Damp cloth with mild soap; no solvents or abrasive scourers |
| Available At | Shabbiri Hardware – Ongata Rongai & Tuala branches, Magadi Road |
How to Install the HM-001 PVC Ceiling
- Measure the room. Multiply length × width to get the ceiling area in m². Divide by the coverage of one panel (about 1.49 m²) and add 10% for cutting and wastage. Also measure the room perimeter for edge trim / cornice.
- Fix the brandering. Fix timber battens (e.g. 2"×1" treated timber) or galvanised metal channels across the roof trusses or joists at 400–600 mm centres. Use a spirit level or laser so the frame is flat and level – the panels follow the frame.
- Run the wiring first. Have your electrician route cables and mark positions for bulbs, downlights and ceiling fans before panels go up.
- Install the edge trim. Fix the PVC L-angle or cornice around the full perimeter of the room, level with the underside of the brandering.
- Cut the first panel. Measure wall-to-wall and subtract about 5–10 mm for expansion. Cut with a fine-tooth hacksaw, jigsaw or sharp utility knife (score and snap).
- Fit the first panel. Slide the groove side into the edge trim along the starting wall, then nail, staple or screw through the fixing flange into every batten.
- Interlock the next panels. Push the tongue of each new panel fully into the groove of the previous one until it clicks tight, keeping the diamond pattern aligned, then fix through the flange. Repeat across the room.
- Cut openings for lights. Mark and cut holes for bulbs, downlights or fan rods with a hole saw or knife before fixing that panel.
- Fit the last panel. Cut the final strip to width and slide it into the edge trim on the opposite wall. Finish corners with matching trim.
- Clean up. Peel off any protective film and wipe the ceiling with a damp cloth.
Where to Use It
🏠 Homes
Bedrooms, sitting rooms, corridors and dining areas.
🚿 Wet Areas
Bathrooms, toilets, kitchens and laundry rooms.
🏢 Commercial
Shops, salons, offices, clinics, schools and churches.
🏘️ Rental Units
Fast, low-cost ceiling for bedsitters and apartment blocks.
🌿 Verandas
Covered porches, balconies and roof eave soffits.
🔧 Renovations
Cover old, stained or termite-damaged ceilings quickly.
Care & Safety Tips
- Store panels flat, indoors and out of direct sun before installation to prevent bending.
- Keep panels away from direct heat sources – use LED or energy-saving bulbs and keep halogen lamps clear of the surface.
- Clean with a soft damp cloth and mild soap only; avoid thinners, petrol or abrasive scourers.
- Wear gloves and eye protection when cutting.
- Fix a roof leak at the source – the PVC will not be damaged, but water can pool on top of the ceiling.
Frequently Asked Questions
What is the HM-001 light gauge PVC ceiling panel?
It is a lightweight interlocking PVC ceiling strip in gloss white with a silver diamond motif, used as a waterproof, low-maintenance ceiling finish.
What does "light gauge" mean?
Light gauge panels are thinner and lighter than heavy gauge panels. They are more economical and easier to handle, and perform well when fixed on properly spaced brandering.
Can I use the HM-001 PVC ceiling in a bathroom or kitchen?
Yes. PVC does not absorb water, so it will not swell, rot or grow mould like boards or gypsum in wet areas.
How many panels do I need?
Divide the room area in m² by about 1.49 m² (one panel), then add 10% for wastage. Example: a 4 m × 3 m room (12 m²) needs about 9 panels. Our staff will gladly calculate this for you.
Do you sell accessories?
Yes – PVC edge trims, cornices and joiners, plus nails and screws for fixing, are available at both branches.
Do you install PVC ceilings?
Shabbiri Hardware is supply-only, but we can share contacts of independent ceiling installers.
Where can I buy it in Nairobi?
At Shabbiri Hardware on Magadi Road – Ongata Rongai branch opposite Hashi Petrol Station, and Tuala branch past Nazarene University. Call 0741 042484 or WhatsApp 0745 554008.
📍 Buy the HM-001 PVC Ceiling at Shabbiri Hardware
Ongata Rongai Branch
Magadi Road, opposite Hashi Petrol Station, Ongata Rongai
Tuala Branch
Magadi Road, past Nazarene University, Tuala
📞 0741 042484 | 📞 0745 554008 | ✉️ shabbirihardware@gmail.com | 🌐 www.shabbirihardware.co.ke
