Light Gauge HM-002 PVC Ceiling Panel – Silver Grey Diamond & Crown Design
Light Gauge HM-002 PVC Ceiling Panel – Silver Grey Diamond & Crown Design
Give any room a rich, royal finish without the cost of gypsum or timber. The Light Gauge HM-002 PVC ceiling panel carries an elegant silver-grey diamond lattice with crown motifs and a subtle textured sheen. It is waterproof, termite-proof, never needs painting and clicks together in minutes – the smart, affordable ceiling choice for homes, shops and offices across Nairobi, Ongata Rongai, Kitengela and Kajiado.
Product Overview

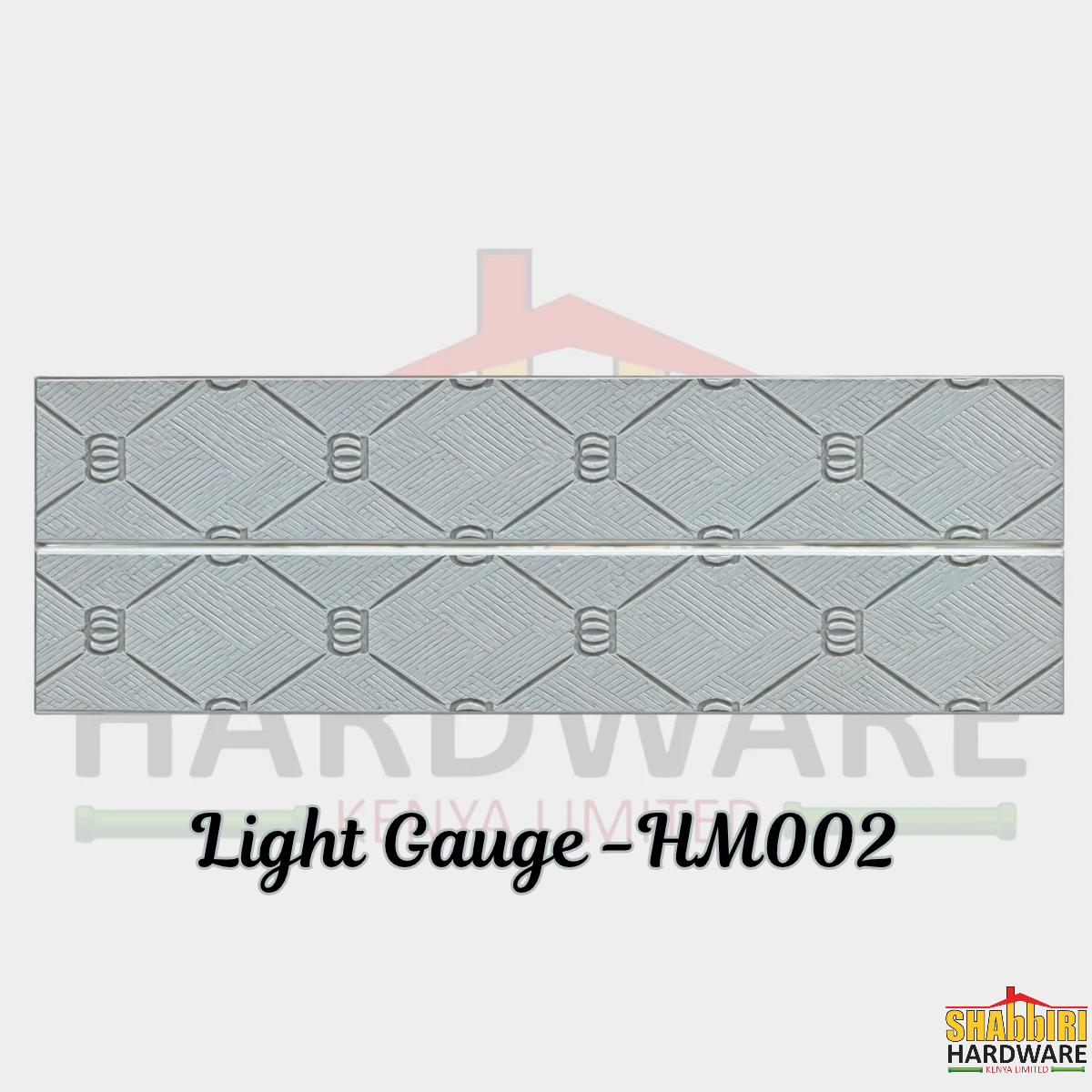

The HM-002 PVC ceiling panel is a light gauge, hollow-core polyvinyl chloride strip panel with a tongue-and-groove edge. The face is printed and laminated with a silver-grey diamond (rhombus) lattice pattern, finished with repeating crown motifs at the diamond joints and a fine embossed texture inside each diamond. A recessed V-groove along the joint gives the finished ceiling a neat striped look between panels.
Because it is light gauge, the panel is easy to carry, cut and fix, and adds very little weight to your roof structure – making it a top pick for budget-friendly PVC ceilings in Kenya, rental units, extensions, kitchens, bathrooms, verandas and commercial fit-outs.
Key Features & Benefits
100% Waterproof
PVC does not absorb moisture – no swelling, rotting or sagging in kitchens, bathrooms and humid areas.
Termite & Pest Proof
Unlike timber ceiling boards, PVC gives termites, borers and mould nothing to feed on.
Royal Decorative Finish
Silver-grey diamond and crown pattern adds a classic, upmarket look to living rooms, shops and offices.
No Painting Needed
Factory finished surface – fix it and you are done. Wipe clean with a damp cloth.
Lightweight & Fast to Fit
Light gauge profile with tongue-and-groove joints – one fundi can cover a room in a day.
Cost-Effective
Lower material and labour cost than gypsum or timber, with very low maintenance over its life.
Technical Specifications
| Product Name | Light Gauge HM-002 PVC Ceiling Panel |
|---|---|
| Model / Code | HM-002 |
| Product Type | PVC tongue-and-groove ceiling strip panel |
| Material | Rigid PVC (polyvinyl chloride), hollow-core extrusion |
| Gauge | Light gauge (lightweight profile) |
| Design / Pattern | Diamond lattice with crown motifs, fine embossed texture |
| Colour | Silver grey with metallic sheen |
| Surface Finish | Printed decorative film with protective lacquer |
| Typical Width | 250 mm |
| Typical Length | 5.95 m |
| Typical Thickness | 5 – 7 mm |
| Edge Profile | Tongue and groove with V-groove joint line |
| Water Resistance | Waterproof – zero water absorption |
| Termite / Mould Resistance | Fully resistant |
| Fire Behaviour | Self-extinguishing PVC (does not support flame once source is removed) |
| Recommended Use | Indoor ceilings and covered outdoor areas (verandas, porches) |
| Fixing Method | Nails, staples or screws through fixing flange onto timber or steel brandering |
| Matching Accessories | PVC L-angle / edge trim, H-joint, corner trim, EPS/XPS cornices |
| Maintenance | Wipe with damp cloth and mild soap |
Dimensions shown are typical for this panel type. Please confirm exact width, length and thickness with our sales team before you order.
Where to Use HM-002 Ceiling Panels
How to Install Light Gauge HM-002 PVC Ceiling Panels
- Measure the room. Measure length and width, calculate the area in m² and add 5–10% for cutting allowance. Our team can help you work out the number of panels and trims.
- Install the brandering. Fix timber battens (2" × 2" or 2" × 1") or galvanised steel furring channels across the room at 400–500 mm centres, running at right angles to the direction the panels will run. Make sure the frame is level.
- Fit the perimeter trim. Nail or screw the PVC L-angle / edge trim around all walls at ceiling height. This hides cut edges and holds the panel ends.
- Cut the panels to size. Measure wall to wall and cut each panel about 5 mm shorter using a fine-tooth saw or sharp cutter. Leave a small gap for expansion.
- Fix the first panel. Slide the first panel into the edge trim with the groove side facing the wall. Fix the tongue flange to every batten with small nails, staples or screws.
- Lock the next panels. Push the groove of the next panel firmly onto the tongue of the fixed panel until it seats fully, then fix through the flange. Keep the diamond and crown pattern aligned across panels.
- Cut for lights and fittings. Mark and cut openings for bulbs, downlights and fans before fixing the panel in place. Use a hole saw for round downlights.
- Fit the last panel. Trim the last panel along its length to fit, slide it into the edge trim and secure it. Add cornices if you want a decorative edge.
- Clean up. Peel off any protective film and wipe the ceiling with a damp cloth.
Installation Tips
- Store panels flat, indoors and away from direct sun before installation.
- Do not over-tighten screws – it can distort the light gauge face.
- Keep batten spacing at 500 mm or less to prevent sagging.
- Keep panels at least 150 mm away from hot bulbs; use LED fittings where possible.
- Ensure the roof is leak-free before fixing a new ceiling.
Care & Maintenance
- Wipe with a soft damp cloth and mild soapy water.
- Avoid abrasive pads, thinners or strong solvents.
- Do not hang heavy fittings directly on panels – fix them to the brandering.
- A damaged panel can be cut out and replaced without redoing the ceiling.
Why Buy from Shabbiri Hardware?
Trusted Since 1990
Over three decades supplying building materials on Magadi Road.
Full Ceiling Range
PVC panels, trims, cornices, brandering, nails and screws – all in one place.
Two Branches
Ongata Rongai and Tuala – close to Kitengela, Karen, Langata, Kiserian and Ngong.
Installer Contacts
We supply the materials and can share contacts of independent installers.
Frequently Asked Questions
Is the HM-002 PVC ceiling panel waterproof?
Yes. PVC does not absorb water, so HM-002 is ideal for kitchens, bathrooms, verandas and other humid areas.
What does "light gauge" mean?
It means a thinner, lighter panel profile. It is economical, easy to handle and adds very little load to your roof – ideal for ceilings.
Can I fix it on timber or metal brandering?
Yes. Fix through the flange onto timber battens or galvanised steel channels with nails, staples or screws, and finish with matching PVC trims.
How many panels do I need?
Divide your ceiling area (m²) by the area of one panel and add 5–10% for cutting. Send us your room size on WhatsApp and we will calculate it for you.
Does Shabbiri Hardware install ceilings?
We are supply-only, but we can share contacts of trusted independent installers.
Where can I buy HM-002 PVC ceiling panels in Nairobi?
At Shabbiri Hardware – Ongata Rongai branch (Magadi Road, opposite Hashi Petrol Station) and Tuala branch (Magadi Road, past Nazarene University).
